Position： Construction Machinery»Excavator

U17

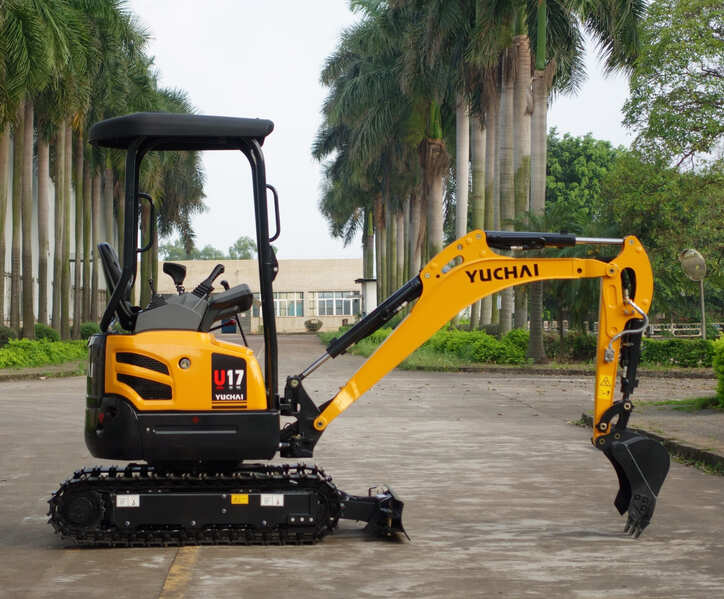

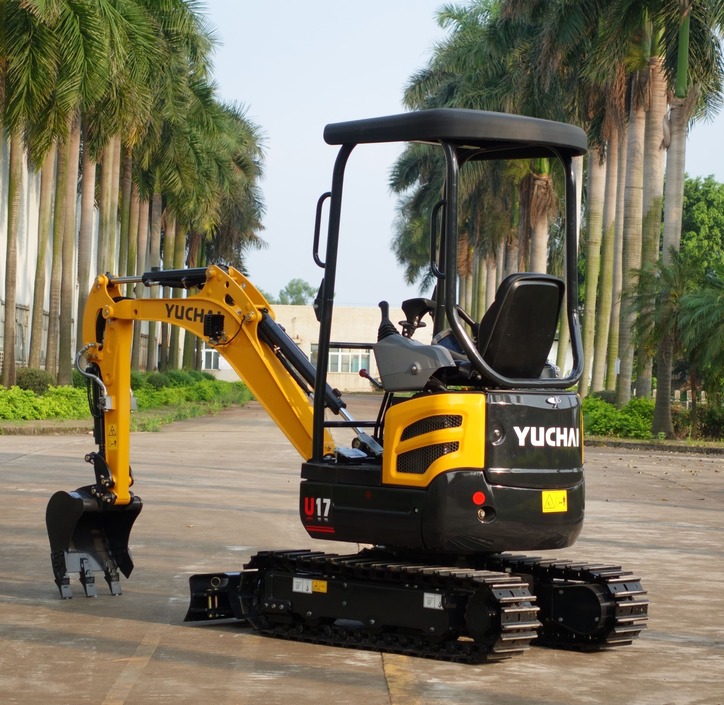

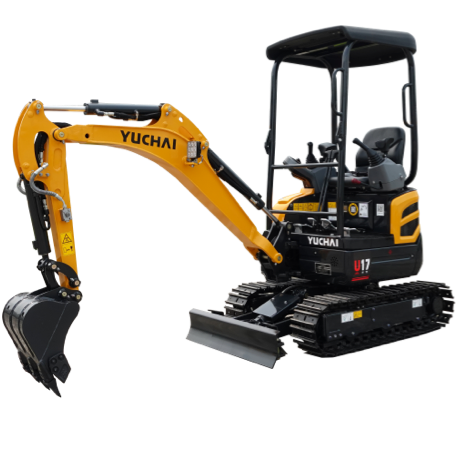

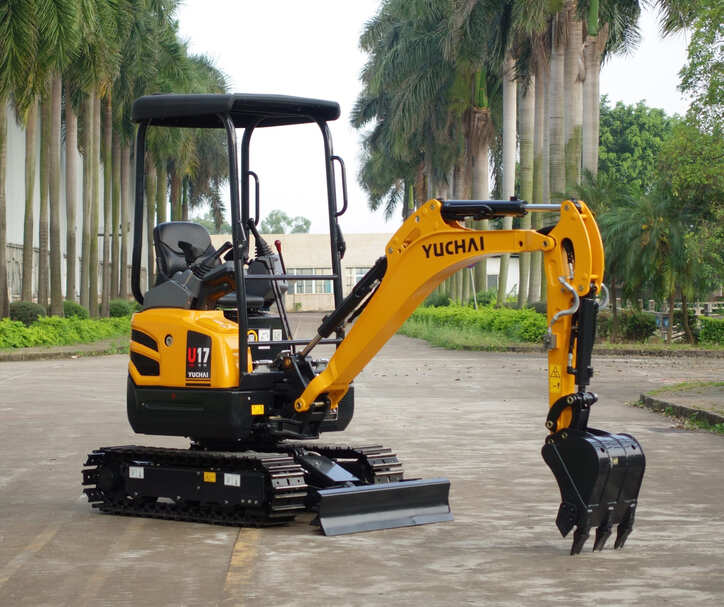

Yuchai U17 mini excavator

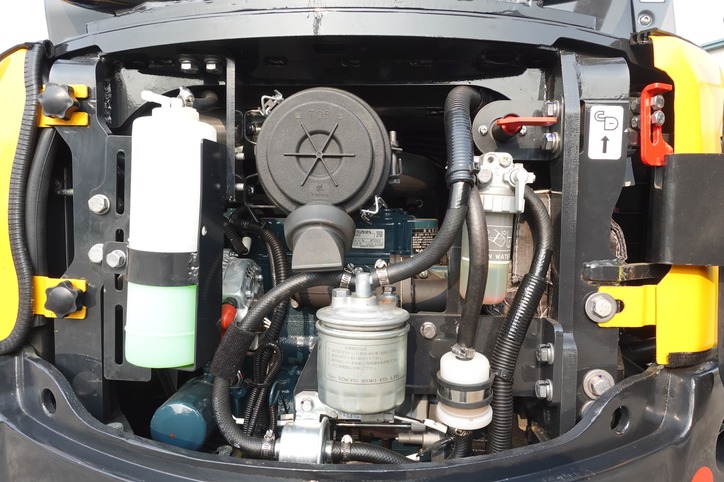

1.Powerful Kubota Engine

2.Exceptional Uphill Performance

3.High Efficiency and Low Fuel Consumption

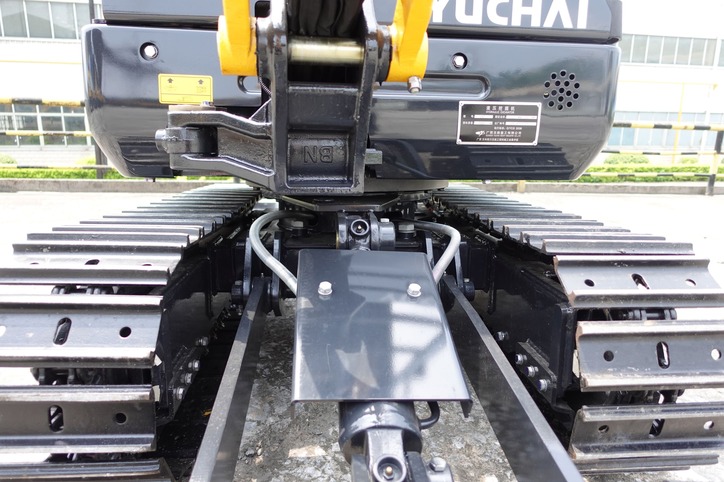

4.Telescopic Chassis, Solid and Reliable

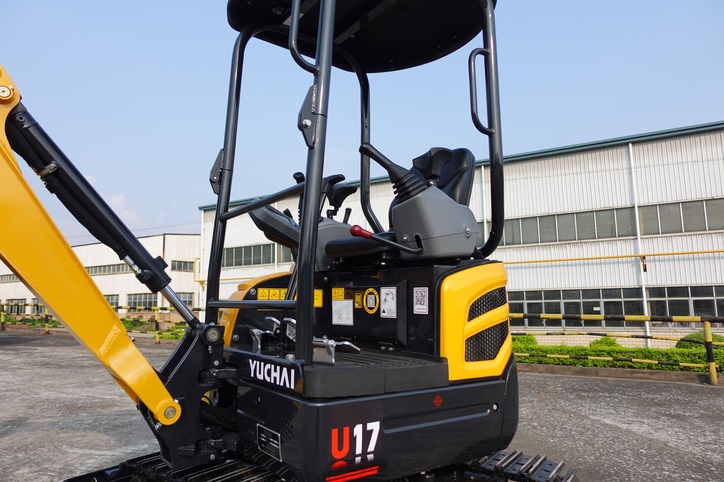

5.Swiftly Detachable Canopy

6.Easy Maintenance

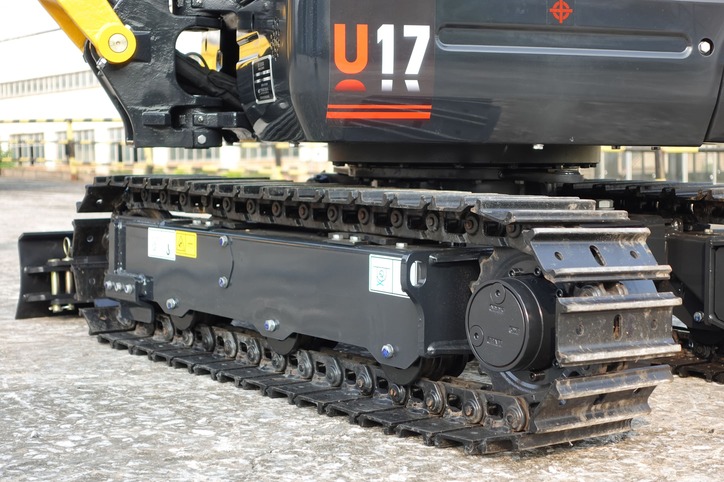

7.Equipped with Standard Rubber Tracks

Specifications

Features

Excavator Model U17
Basic parameter
Machine weight kg 1720
Bucket capacity m³ 0.05
Width of bucket mm 470
Performance parameter
Engine model Kubota D902-E4B
Engine power kW/rpm 11.8/2300
Max. Gradeability 30°
Max. digging force of arm kN 9.5
Max. digging force of bucket kN 17.2
Traveling speed km/h 2.0/4.0
Max. hauling force kN 25
Slewing speed of platform rpm 8.5~10.5
Operating parameter
Max. digging height mm 3600
Max. digging depth mm 2310
Max. digging radius mm 3930
Max. digging radius on ground level mm 3870
Max. dumping height mm 2485
Min. slewing radius mm 1500
Max. vertical digging depth mm 1920
Max. dozer balde heigh mm
Mzx. dozer blade depth mm
Transportation dimension
Overall length mm 3930
Overall width mm 990
Overall height mm 2340
Other Parameter
Width of undercarriage mm 990/1240
Length of track mm 1600
Width of track mm 230
Height between undercarriage and ground mm 150
Height between platform and ground mm 450
Platform tail turning radius mm 620
Length to center of rollers mm 1230
Fuel tank capacity L 16
Hydraulic oil tank capacity L 16
Track gauge mm 760/1010
Working Pressure Mpa 24
Ground Contact Pressure kPa
Arm length mm 950
Boom length mm 1828
Steering head angle ° 65° (L) / 65° ®
Flow rate L/Min 64.4
