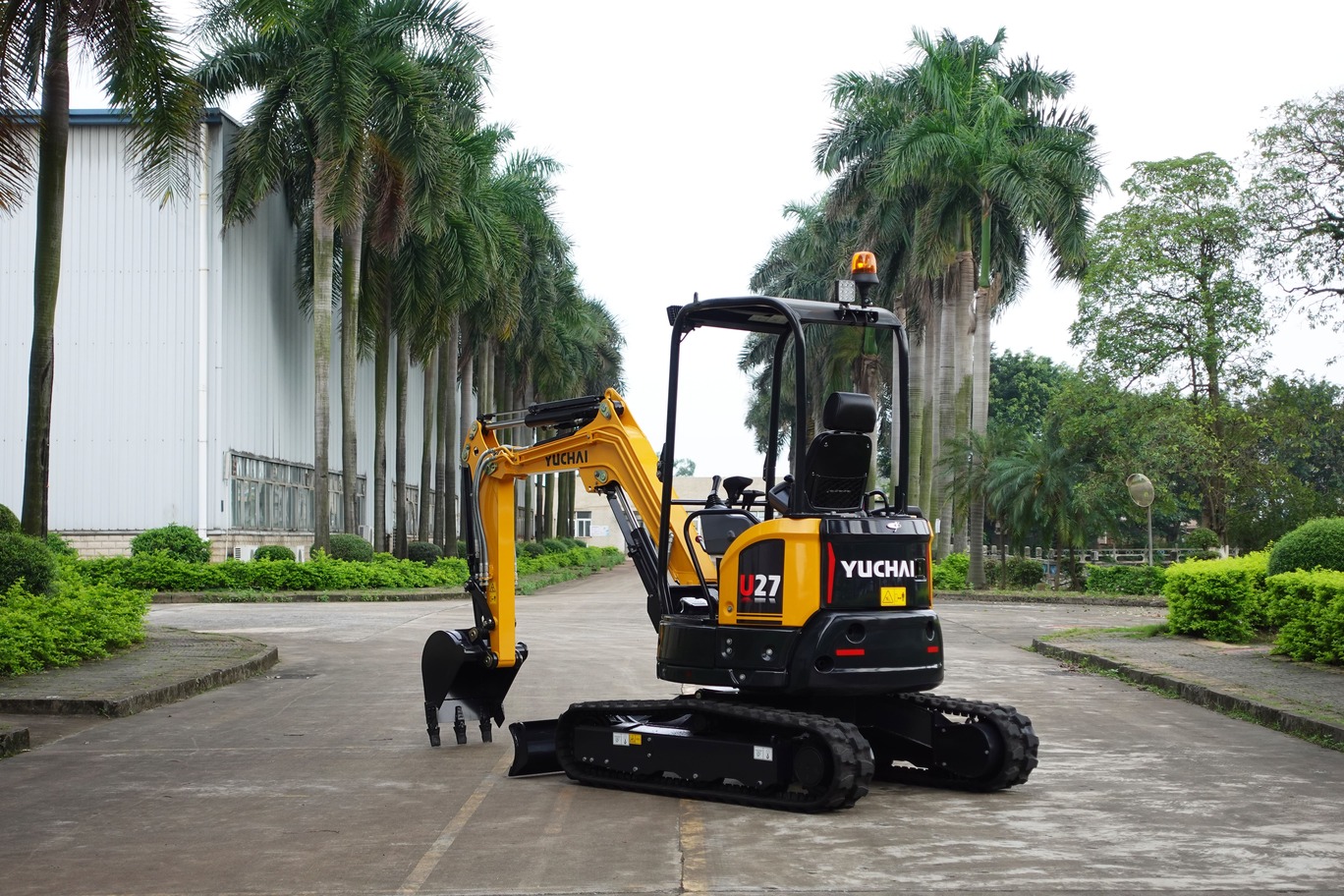

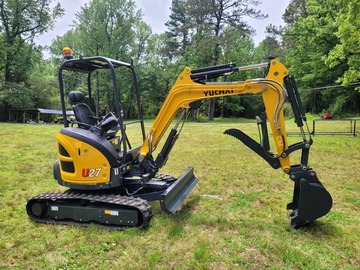

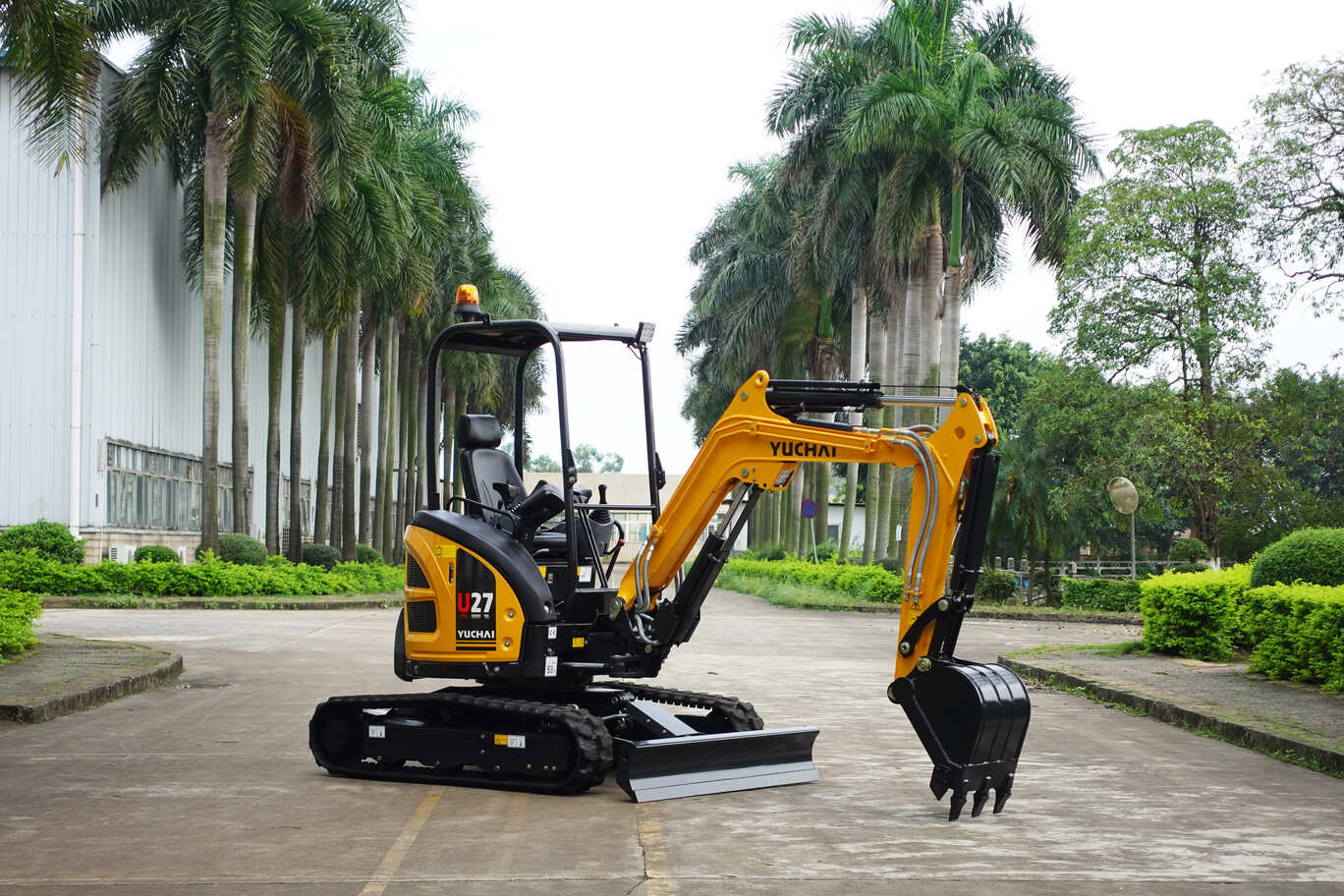

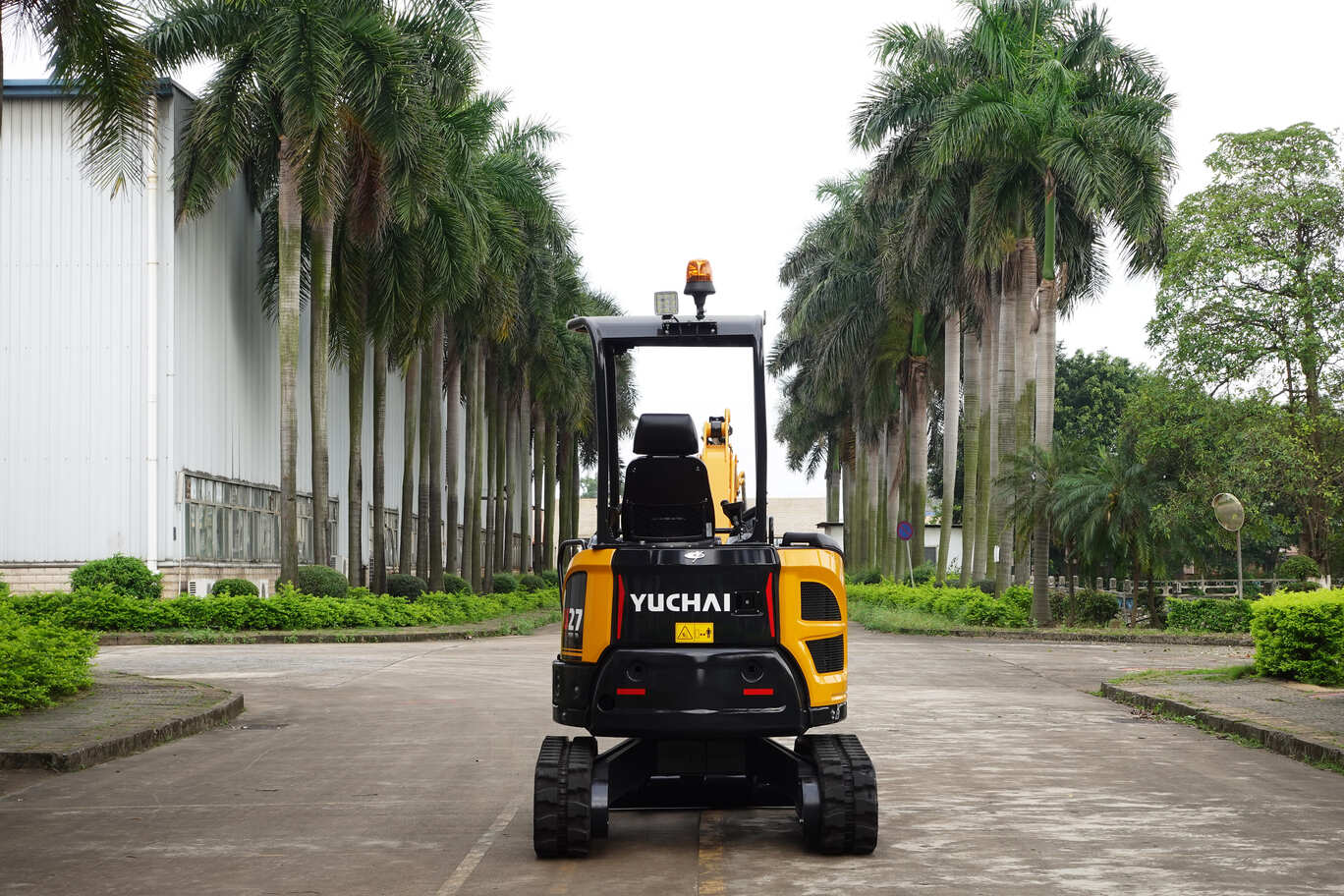

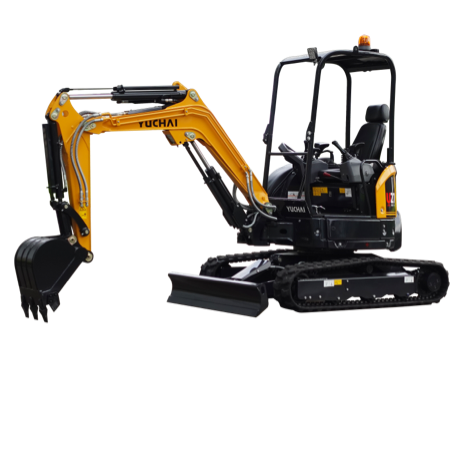

The Yuchai U27 excavator is a highly efficient and reliable construction machine designed for various building and excavation tasks. It boasts exceptional performance and outstanding operational capabilities, making it suitable for narrow job sites and diverse terrain conditions.

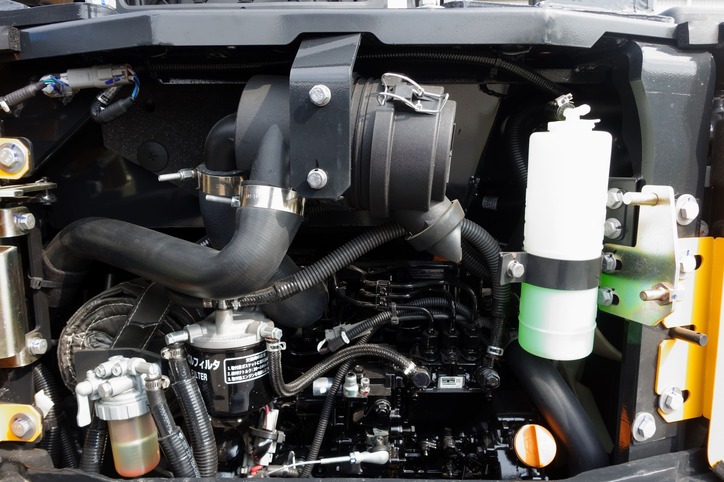

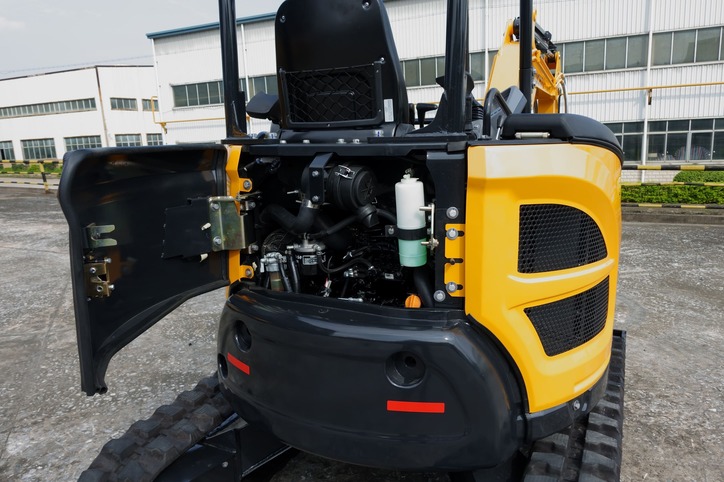

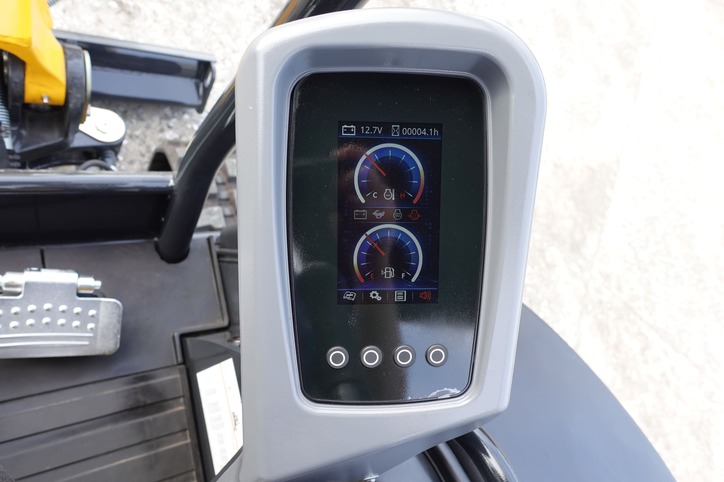

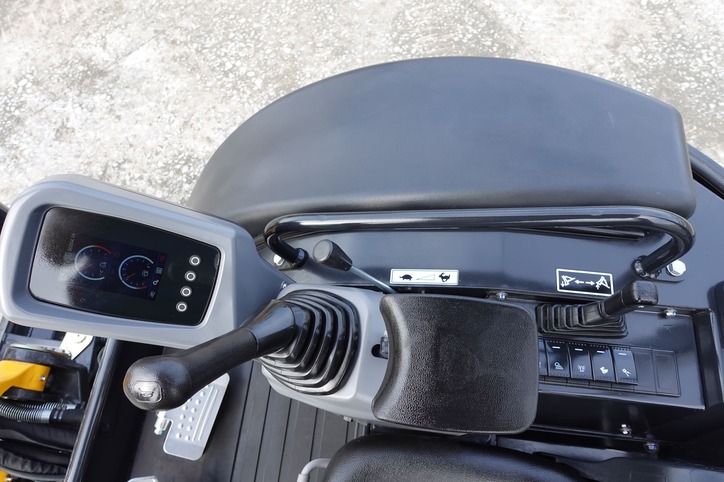

Equipped with a powerful Yanmar 3TNV76 engine, this excavator delivers reliable power output and excellent fuel efficiency. Its precise control system makes operations easy and precise, providing users with an exceptional working experience.
The durability and reliability of the Yuchai U27 excavator have earned it high praise. Its robust structure and high-quality materials ensure it withstands the rigors of demanding work environments. Additionally, the excavator incorporates advanced technology and safety features to ensure the well-being of operators and the surrounding environment.
1.Euro V engine (Yanmar engine)
2.Load sensive hydraulic system
3.Superior working efficiency
4.Low fuel consumption

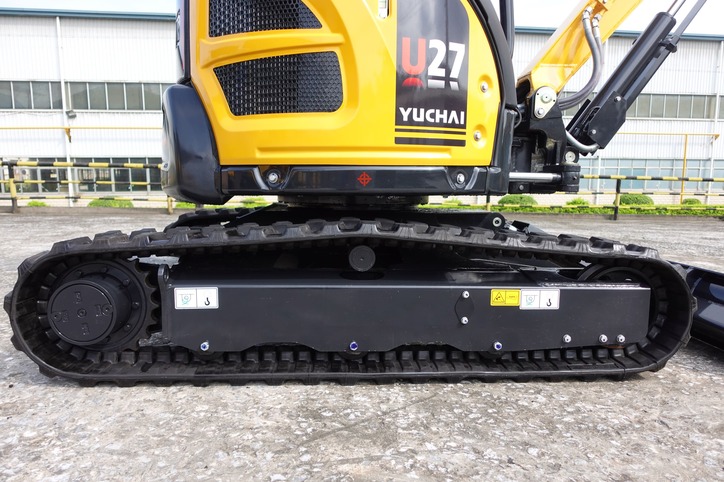

5.Standard with Rubber Tracks
Specifications
Features
Excavator Model | U27 | |
Basic parameter | ||
Machine weight | kg | 2600 (Canopy) / 2740 (Cabin) |
Bucket capacity | m³ | 0.09 |
Width of bucket | mm | 510 |
Performance parameter | ||
Engine model | Yanmar 3TNV76 / 3TNV80F | |
Engine power | kW/rpm | 14.5/2400 / 15.2/2500 |
Max. Gradeability | 30° | |
Max. digging force of arm | kN | 14.4 |
Max. digging force of bucket | kN | 23.1 |
Traveling speed | km/h | 2.3/4.2 |
Max. hauling force | kN | 26 |
Slewing speed of platform | rpm | 10~12 |
Operating parameter | ||
Max. digging height | mm | 4170 |
Max. digging depth | mm | 2540 |
Max. digging radius | mm | 4520 |
Max. digging radius on ground level | mm | 4400 |
Max. dumping height | mm | 2780 |
Min. slewing radius | mm | 1950 |
Max. vertical digging depth | mm | 2240 |
Max. dozer balde heigh | mm | 340 |
Mzx. dozer blade depth | mm | 355 |
Transportation dimension | ||
Overall length | mm | 4110 |
Overall width | mm | 1500 |
Overall height | mm | 2490 |
Other Parameter | ||
Width of undercarriage | mm | 1500 |
Length of track | mm | 2040 |
Width of track | mm | 250 |
Height between undercarriage and ground | mm | 320 |
Height between platform and ground | mm | 525 |
Platform tail turning radius | mm | 750 |
Length to center of rollers | mm | 1590 |
Fuel tank capacity | L | 30 |
Hydraulic oil tank capacity | L | 25 |
Track gauge | mm | 1590 |
Working Pressure | Mpa | 24 |
Ground Contact Pressure | kPa | 30 |
Arm length | mm | 1150 |
Boom length | mm | 2020 |
Steering head angle | ° | 47° (L) / 74° ® |
Flow rate | L/Min | 61.6 |
