U35

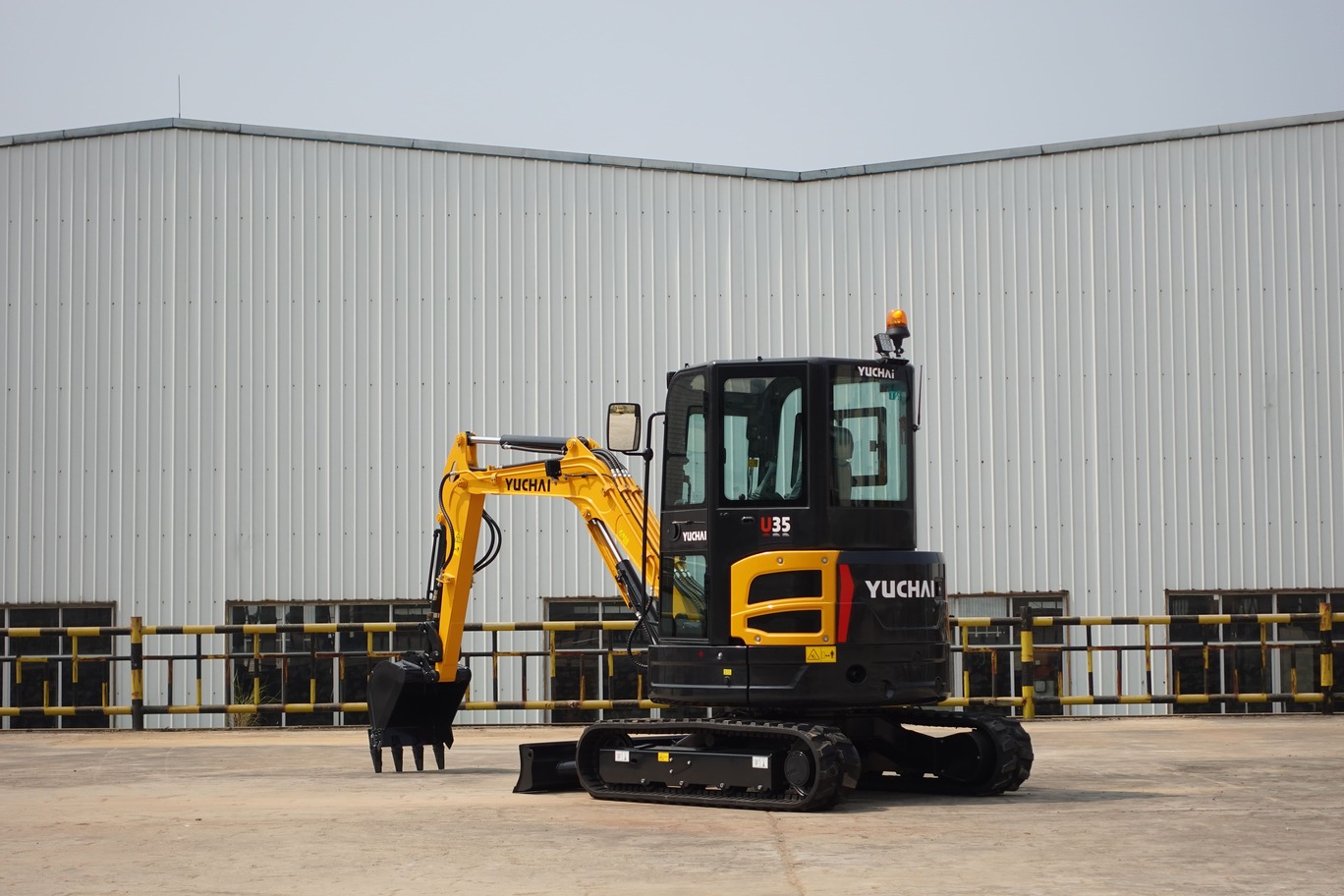

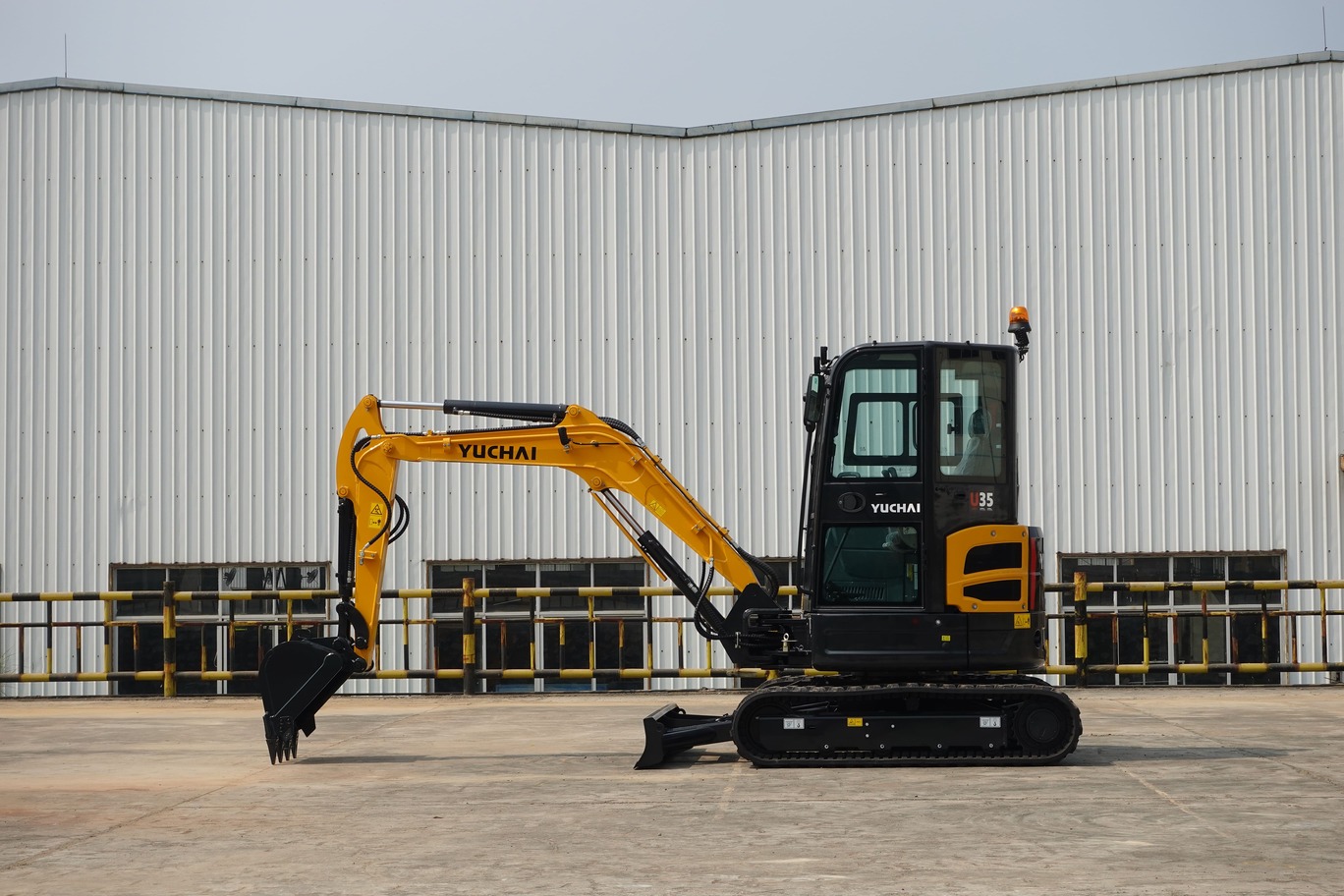

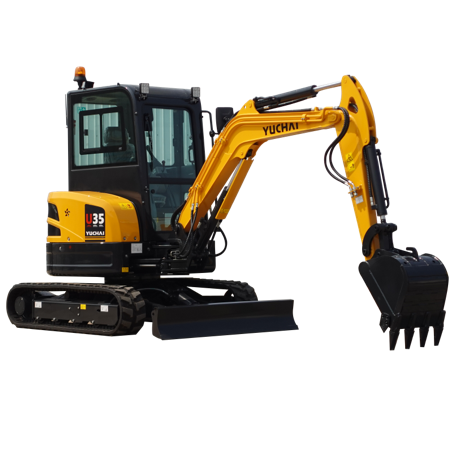

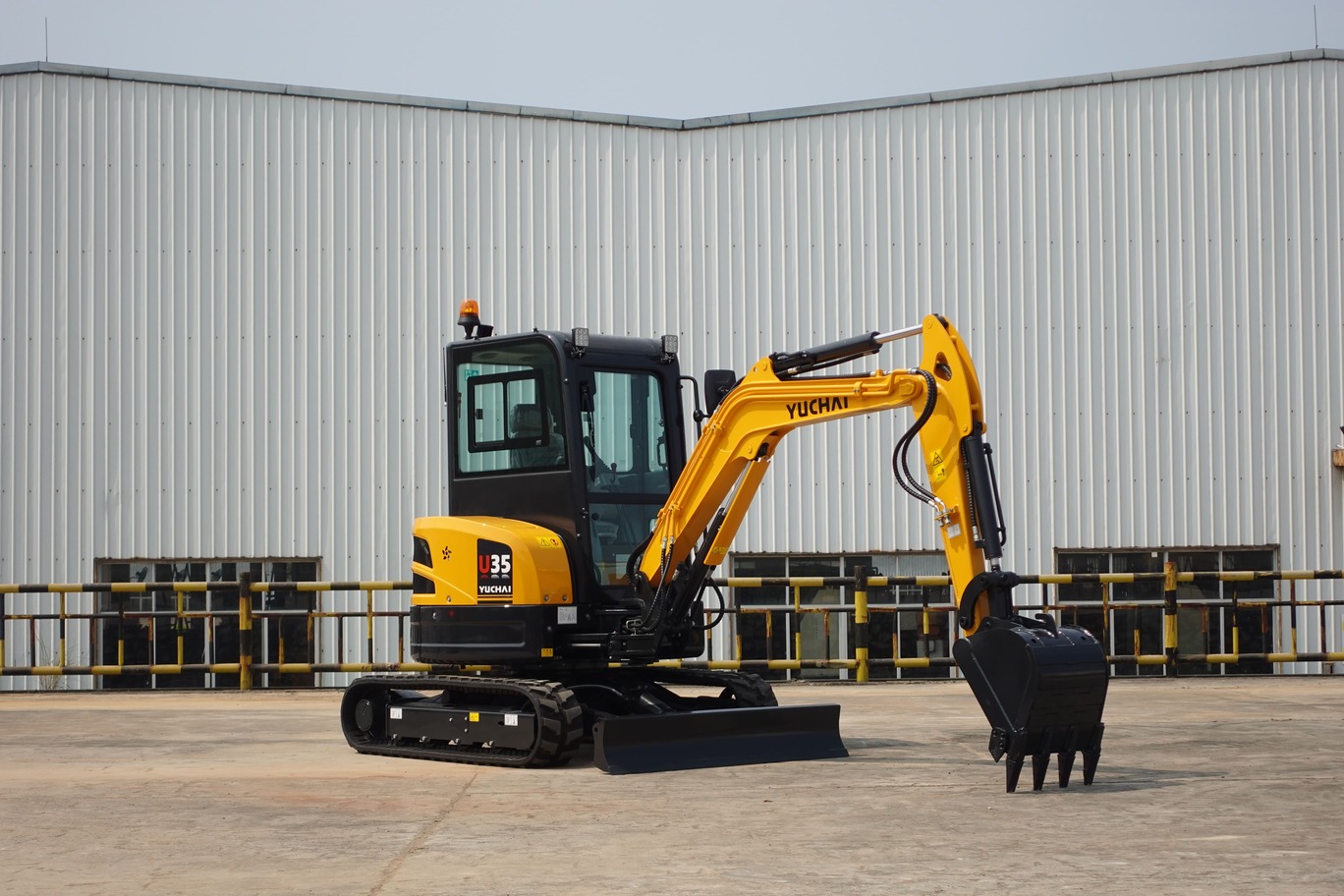

Yuchai U35 Zero Tail mini excavator

The Yuchai U35 is an outstanding excavator featuring a zero-tail swing design, ideal for navigating confined job sites and tight spaces. Its compact yet powerful construction ensures exceptional maneuverability without compromising performance. Whether working in narrow urban areas or tackling complex construction projects, this excavator guarantees maximum efficiency and productivity.

1.Optional Euro V/ Tier4 engine(Yanmar engine)

2.Load sensive hydraulic system

3.Superior working efficiency

4.Low fuel consumptionTilt-capable cabin

5.Standard with Rubber Tracks

Specifications

Features

Excavator Model U35
Basic parameter
Machine weight kg 3860
Bucket capacity m³ 0.12
Width of bucket mm 617
Performance parameter
Engine model Yanmar 3TNV88 / 3TNV88F
Engine power kW/rpm 18.2/2200 / 20.4/2200
Max. Gradeability 35°
Max. digging force of arm kN 25.8
Max. digging force of bucket kN 32.7
Traveling speed km/h 4.80/3.10
Max. hauling force kN 29
Slewing speed of platform rpm 11～13
Operating parameter
Max. digging height /strong> mm 5156
Max. digging depth mm 3170
Max. digging radius mm 5557
Max. digging radius on ground level mm 5438
Max. dumping height mm 3588
Min. slewing radius mm 2260
Max. vertical digging depth mm 2620
Max. dozer balde heigh mm 373
Mzx. dozer blade depth mm 425
Transportation dimension
Overall length mm 4853
Overall width mm 1800
Overall height mm 2575
Other Parameter
Width of undercarriage mm 1800
Length of track mm 2093
Width of track mm 300
Height between undercarriage and ground mm 347
Height between platform and ground mm 572
Platform tail turning radius mm 1014
Length to center of rollers mm 1500
Fuel tank capacity L 52
Hydraulic oil tank capacity L 40
Track gauge mm 1620
Working Pressure Mpa 24
Ground Contact Pressure kPa 33
Arm length mm 1400
Boom length mm 2500
Steering head angle ° 67.7° (L) / 53.7° ®
Flow rate L/Min 90
