Position： Construction Machinery»Excavator

YC135

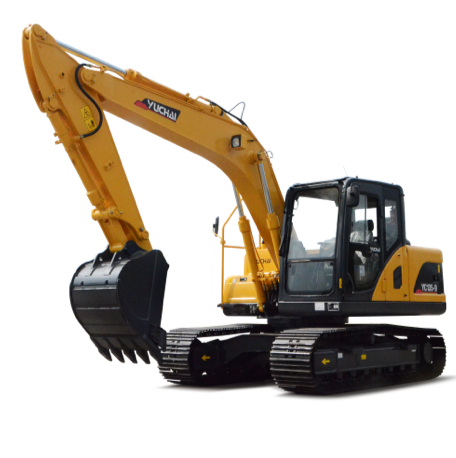

Yuchai YC135 excavator

1.Fuel saving and high efficiency

2.Large fuel tank of 270 liters

3.With one button start function

4.Steel casting have been used for thestress part of the working device

5.Brand New large cabin

6.Comfortable driving experience

7.Easy maintenance

Specifications

Features

Excavator Model YC135
Basic parameter
Machine weight kg 13800 / 14740 (with dozer blade)
Bucket capacity m³ 0.52
Width of bucket mm 934
Performance parameter
Engine model Yuchai 4DK / Cummins QSF 3.8
Engine power kW/rpm 86/2200
Max. Gradeability 35°
Max. digging force of arm kN 75.8
Max. digging force of bucket kN 106
Traveling speed km/h 5.0/3.1
Max. hauling force kN 121
Slewing speed of platform rpm 11
Operating parameter /strong>
Max. digging height mm 8335
Max. digging depth mm 5257
Max. digging radius mm 8070
Max. digging radius on ground level mm 7933
Max. dumping height mm 5896
Min. slewing radius mm 2561
Max. vertical digging depth mm 4380
Max. dozer balde heigh mm
Mzx. dozer blade depth mm
Transportation dimension
Overall length mm 7784
Overall width mm 2600
Overall height mm 2853
Other Parameter
Width of undercarriage mm 2600
Length of track mm 3695
Width of track mm 500 / 600
Height between undercarriage and ground mm 415
Height between platform and ground mm 919
Platform tail turning radius mm 2315
Length to center of rollers mm 2950
Fuel tank capacity L 270
Hydraulic oil tank capacity L 105
Track gauge mm 2950
Working Pressure Mpa 34.3
Ground Contact Pressure kPa
Arm length mm 2250
Boom length mm 4600
Steering head angle °
Flow rate L/Min 2×132.7
