YC215

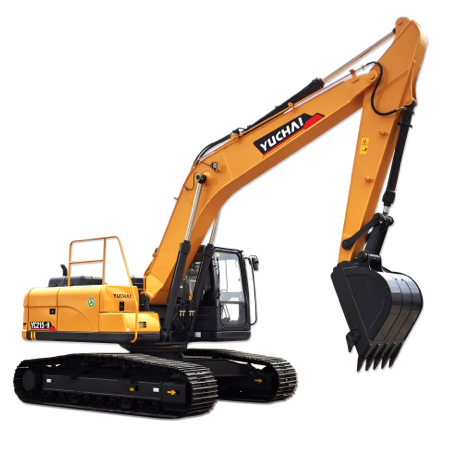

Yuchai YC215 excavator

Experience the power and versatility of the YC215 medium excavator by Yuchai Heavy Industry. With its advanced technology, comfortable cabin, and safety features, the YC215 is the ideal choice for your excavation needs

1.Yuchai Engine

2.Structural Reliability

3.Excellent Performance

4.High Eficiency

Specifications

Features

Excavator Model YC215
Basic parameter
Machine weight kg 22300
Bucket capacity m³ 0.9~1.1
Width of bucket mm /
Performance parameter
Engine model Yuchai A05
Engine power kW/rpm 140/2200
Max. Gradeability 35°
Max. digging force of arm kN 109
Max. digging force of bucket kN 150
Traveling speed km/h 3.4/5.2
Max. hauling force kN 195
Slewing speed of platform rpm 11~13
Operating parameter
Max. digging height mm 10120
Max. digging depth mm 6584
Max. digging radius mm 9875
Max. digging radius on ground level mm 9635
Max. dumping height mm 7200
Min. slewing radius mm 2965
Max. vertical digging depth mm 5822
Max. dozer balde heigh mm
Mzx. dozer blade depth mm
Transportation dimension
Overall length mm 9590
Overall width mm 2980
Overall height mm 3160
Other Parameter
Width of undercarriage mm 2980
Length of track mm 4550
Width of track mm 600
Height between undercarriage and ground mm 470
Height between platform and ground mm 1100
Platform tail turning radius mm 2873
Length to center of rollers mm 3655
Fuel tank capacity L 325
Hydraulic oil tank capacity L 200
Track gauge mm 3655
Working Pressure Mpa 34.3
Ground Contact Pressure kPa
Arm length mm
Boom length mm
Steering head angle °
Flow rate L/Min 217x2+19.5
