Position： Construction Machinery»Excavator

YC230

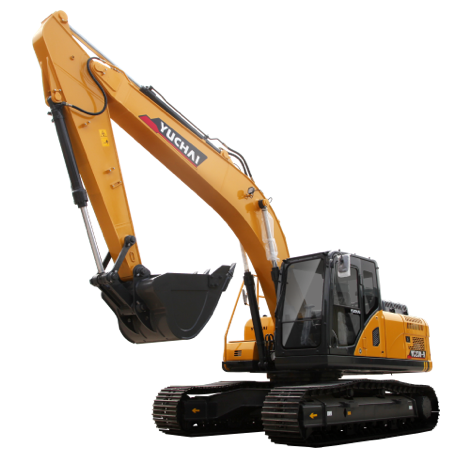

Yuchai YC230 excavator

1.Cummins Engine

2.Structural Reliability

3.Excellent Performance

4.High Efficiency

Specifications

Features

Excavator Model YC230
Basic parameter
Machine weight kg 23100
Bucket capacity m³ 1.08
Width of bucket mm 1340
Performance parameter
Engine model Cummins QSB7
Engine power kW/rpm 124/2050
Max. Gradeability 35°
Max. digging force of arm kN 102
Max. digging force of bucket kN 139.3
Traveling speed km/h 3.4/5.2
Max. hauling force kN
Slewing speed of platform rpm 13~15
Operating parameter
Max. digging height mm 9725
Max. digging depth mm 6625
Max. digging radius mm 9890
Max. digging radius on ground level mm 9725
Max. dumping height mm 6815
Min. slewing radius mm 3410
Max. vertical digging depth mm 6040
Max. dozer balde heigh mm
Mzx. dozer blade depth mm
Transportation dimension
Overall length mm 9695
Overall width mm 2990
Overall height mm 3115
Other Parameter
Width of undercarriage mm 2990
Length of track mm 4450
Width of track mm 600
Height between undercarriage and ground mm 470
Height between platform and ground mm 1070
Platform tail turning radius mm 2945
Length to center of rollers mm 3655
Fuel tank capacity L 350
Hydraulic oil tank capacity L 210
Track gauge mm
Working Pressure Mpa 34.3
Ground Contact Pressure kPa
Arm length mm
Boom length mm
Steering head angle °
Flow rate L/Min 216x2
