Position： Construction Machinery»Electric equipment

D170

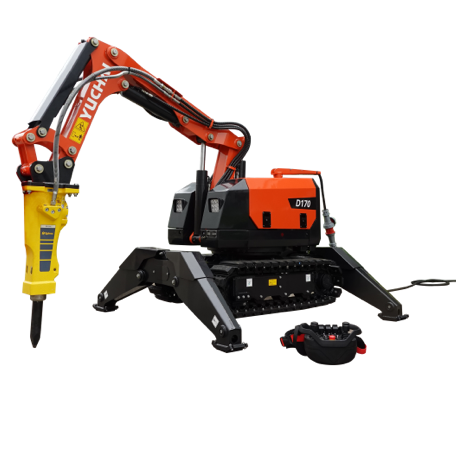

Yuchai D170 Electric Remote-Controlled Demolition Robot

The Yuchai D170 electric remote-controlled demolition robot, developedby YuchaiHl, is a compact and agile equipment designed for preciseoperations in narrow spaces. With a body width of 780mm, it can passthrough various terrain.
lt can operates in wide angel, offering powerful demolition capabilities,high-temperature resistance, remote control functionality, and ensuringsafety. Versatile and adaptable, it suits various harsh environments suchas construction sites, metallurgical plants, cement factories, tunnels,emergencies, and nuclear industries.

1.Excellent terrain traversal capability

2.Operates in all angles

3.Strong demolition capabilities

4.Remote control

5.Safety

6.Reliability

7.Saving 90% on fuel costs

8. 0 maintenance in 2000 hours

9.LOW failure rate

Specifications

Features

D170
Performance Parameter
Total Weight (Rubber Tracks) kg 1850
Total Weight (Steel Tracks/Track Pads/Extension Device/Additional Weight each increased by 50kg) kg 2050
Rated Power kW/rpm 24/1454
Voltage/Frequency/Current V/ Hz/A 380/50/47
Max. slewing Speed r/min 6
Max. Travel Speed km/h 2
Max.ground Pressure Ratio kPa 33
Noise Power (with/without Breaker) dB (A) 87/118
Max. Cradeability ° 30
Max.total Traction Forceta kN 22
Hydraulic System Load-Sensitive System
System Rated Flow L/min 65.4
Standard System Pressure bar 170
Reinforced System Pressure bar 230
Hydraulic Tank Capacity L 32
Control Method Remote Control (optional)
Remote Control Distance m 300(optional)
Control System Voltage V 24
Hammer Model SB202
Hammer Weight kg 200
Standard Drill Rod mm Φ65×600
Rated Pressure bar 100~150
Rated Flow L/min 35~65
Impact Frequency bpm 850-1800
A Overall Length mm 2400
B Overall Width (folded/unfolded leg) mm 780/1080
C Overall Height mm 1255
I Ground Length of Tracks mm 1045
J Track Length mm 1410
V Track Gauge(folded/unfolded leg) mm 550/850
W Full Track Width (folded/unfolded leg) mm 780/1080
T Track Width mm 230
E Height of Counterweight from Ground mm 495
F Height of rear panel mm 1120
G Min. Ground Clearance mm 190
P Tail Length mm 720
N Leg Turning Radius mm 1000
O Machine Passing Diameter mm 1380/1490
K Machine Length mm 1930
D Platform Width mm 780
H Support Height mm 145
S Max. Width of Legs when Open mm 2190
X Front and Rear Support Span mm 2010
Y Left and Right Support Span mm 2030
α Front/Back Departure Angle ° 27
AA Max. Operating Radius mm 4450
BB Max. Operating Height mm 4820
CC Max. Operating Depth mm 2110
DD Horizontal Operating Height mm 1450
Platform slewing Angle ° 360
