Position： Construction Machinery»Electric equipment

S150

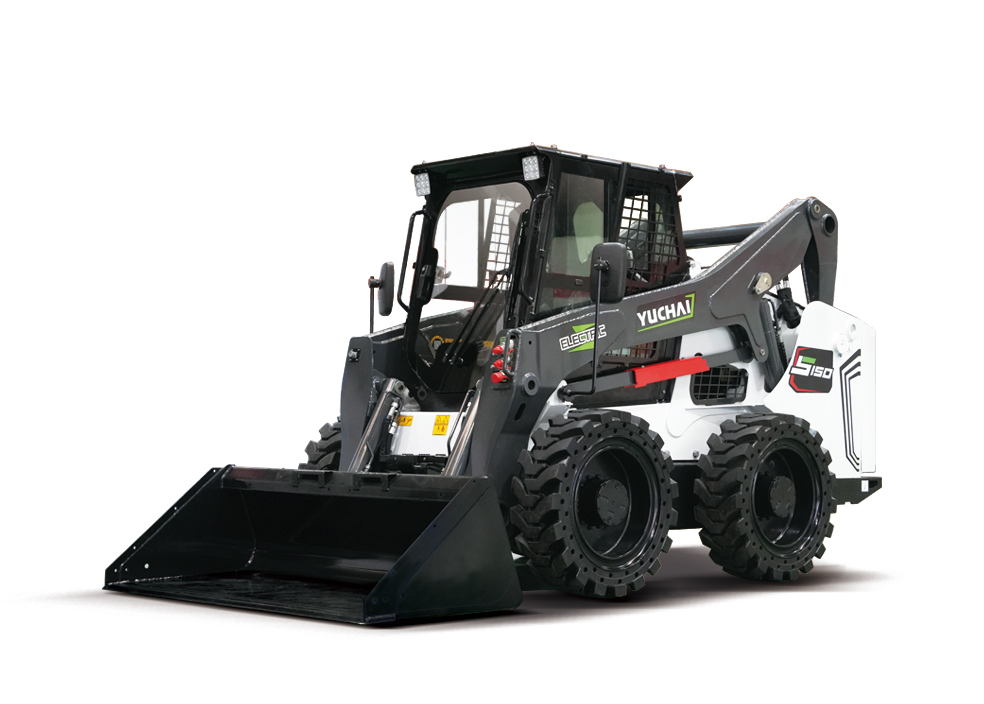

Yuchai S150 electric skid steer loader

Global first wheel side motor driving technology
Global first wheel side AUTO-HOLD technology
Integrated chassis
Power capacity increased by 25%
Improved job stability by 15%
Battery life increased by 40%

The Yuchai S150 electric skid steer loader adopts the global first wheel side motor driving，wheel side AUTO-HOLD technology and integrated chassis.It is together with features compact size,good trafficability, large operating range and comfortable driving experience, intelligent electronic control, green and environmentally friendly, low-failure rate and low-use cost.S150 supports fast charging function. By 1-hour fast charging, it can work for 8-9 hours. It can be used with a variety of attachments and widely used suitable for farms, forest farms, urban infrastructure, roads or construction sites, factories, and workshops, etc.

Specifications

Features

Performance Parameters S35
Basic parameter
Machine Weight kg 4950
Bucket capacity m³ 0.5
Bucket width mm 1880
Technical Specification
Battery Lithium lron Phosphate
Rated power kW/rpm 32/3140+4×10/3140
Battery capacity N.m/N.m 105/140
Rated Operating Load kg 1620
Tipping Load kg 3100
System working pressure MPa 23（0~+0.5）
Flow Rate L/min 87.1+51.1
Increase maximum digging force kN 25
Tipping kN 24.5
Max. travel speed(low gear ) km/h 10/20 km/h
Fast charge 1 Hour Charging from 30% to 80%
Endurance* h 8-9
Drive System
4-Wheel independent direct driving by electric motor
Operating parameter
A Overall operating height mm 4280
B Height to top of cab mm 2065
C Dumping angle at maximum height ° 21.5
D Ground clearance mm 207
E Wheelbase mm 1227
F Overall length without standard bucket mm 3066
G Overall length with standard bucket mm 3830
H Maximum angle of flat ground ° 31
I Unloading height mm 2610
J Height to bucket hinge pin mm 3335
K Loading distance at Max. unloading height mm 845
L Dumping angle at maximum height ° 41°
M Rollback of bucket at full height ° 98°
N Bucket width mm 1880
O Radius of gyration mm 2179
P Tread mm 1507
Q Machine width mm 1832
