Z25

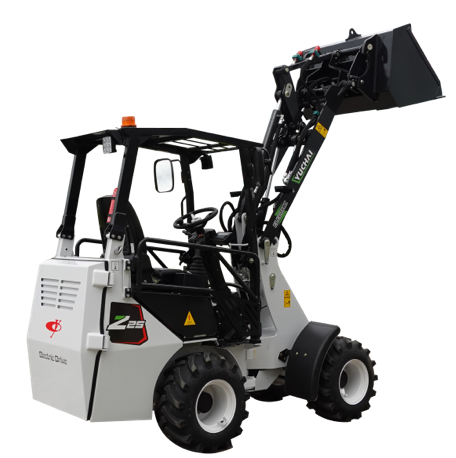

YC Z25 Electric Small Articulated Loaders

1.Saving energy cost by 91%

2.0 maintenance during 2000 hours

3.Low failure rate

4.Battery capacity increased by 40%

5.Wheel motor driving;

6.AUTO HOLDTraction force increased by 18.8%

7.Operation stability increased by 7.5%

8.Battery life increased by 50%

9.360°rotation function in place

Specifications

Features

YC Z25
Basic parameter
Machine Weight kg 1880
Rated Operating Load kg 800
Max.traveling speed km/h 0-12
Hydraulic System
Pure electric control
Working pressure Mpa 18
Battery System battery pack/secondary battery pack/secondary
Battery Lithium-ron Lithium-ron
Battery voltage v 96
Battery capacity (gross) kWh 21
Fastest charging time （from 20% to 80%, supported by fast charger) h 1
Standard endurance * h ≥ 6
Operating voltage v 12
Kipplast mit Schaufel - Maschinegerade, Hubgerust horizontal kg 800
Kipplast mit Schaufel - Maschinegeknickt,Hubgerust horizontal kg 605
Kipplast mit Palettengabel -Maschine gerade, Hubgerusthorizontal kg 520
Kipplast mit Palettengabel -Maschine geknickt, Hubgerusthorizontal kg 395
Drive Syste
Wheel motor driving
AUTO HOLD
Tank capacity for hydraulic oil L 8
Travel speeds increase/reduction 2
Travel speed Standard km/h 0-12
Max. hydraulic discharge volume L/min 36
Max. working pressure bar 180
Quick coupler type hydraulic
Lifting cylinder 2
Tipping cylinder 1
Steering type hydraulic articulated pendulum steering hydraulic articulated pendulum steering
Steering cylinder 1
Oscillating angle ±58 degree ±58 degree
Parking brake disc brake
A Overall Length mm 3850
B Overall Length（Without bucket） mm 3000
C Bucket pivot point (to center of axle) mm 461
D Wheel base mm 1345
E Rear Overhang mm 904
F Overall Height mm 2138
H Seat Height mm 1178
J Overall Operating Height mm 3547
K Height of Bucket Pivot (Max.) mm 2781
L Loading-Over Height mm 2518
M Dumping Height mm 2007
N Bucket to Front Wheel Distance (Dumping) mm 447
O Digging Depth mm 55
P Overall Width (Wide Tire/Narrow Tire) mm 1106/930
Q Track Width (Wide Tire/Narrow Tire) mm 801/740
S Ground Clearance mm 198
T Min. Radius External mm 2268
U Radius at the Outer edge mm 1796
V Inside Turning Radius mm 653
W Inclination Angle ° 58
X Rollback Angle at Max.Lifting Height ° 57
Y Dumping Angle (Max.) ° 35
Z Rollback Angle (on the ground) ° 38
