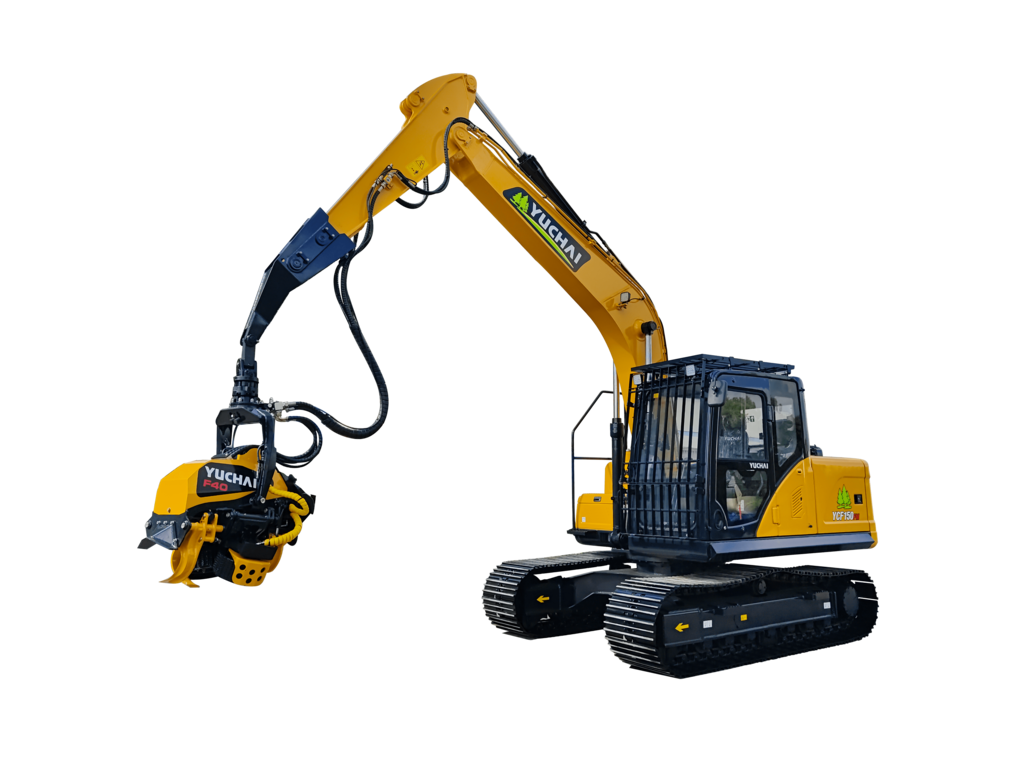

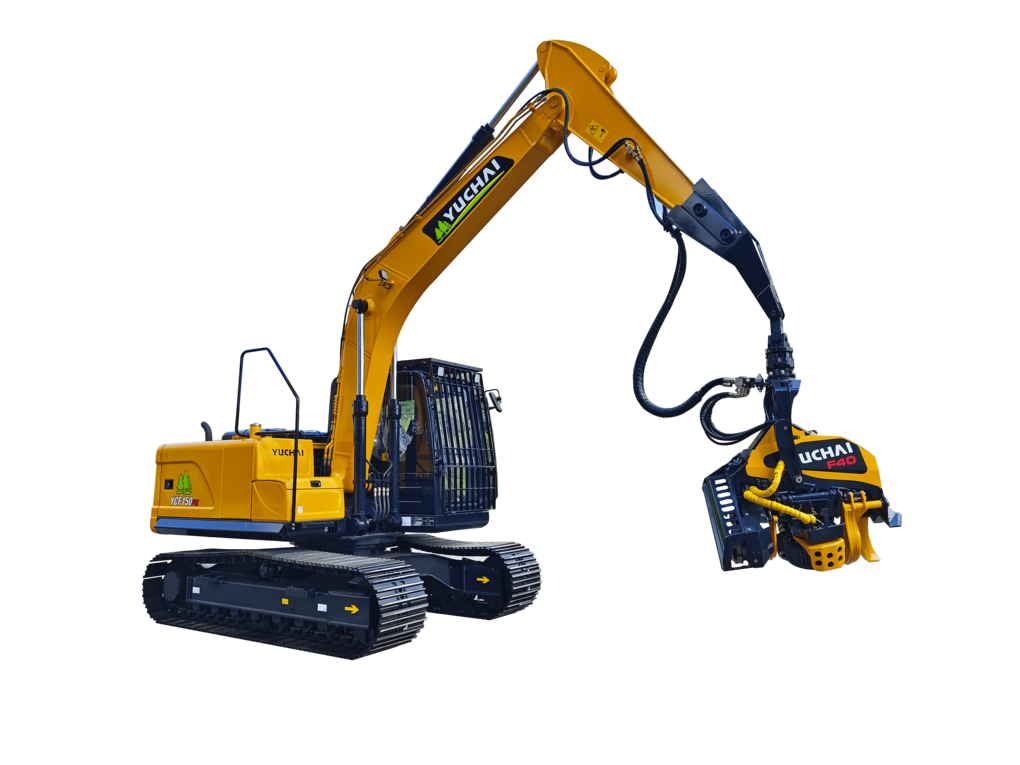

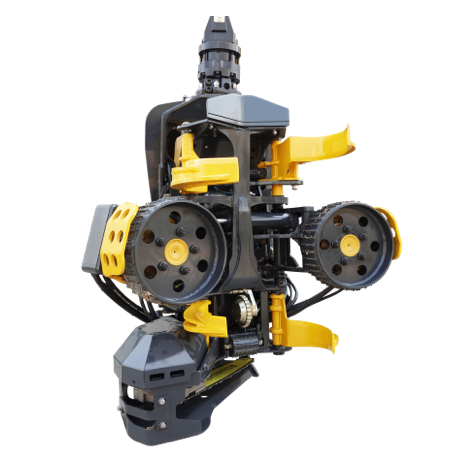

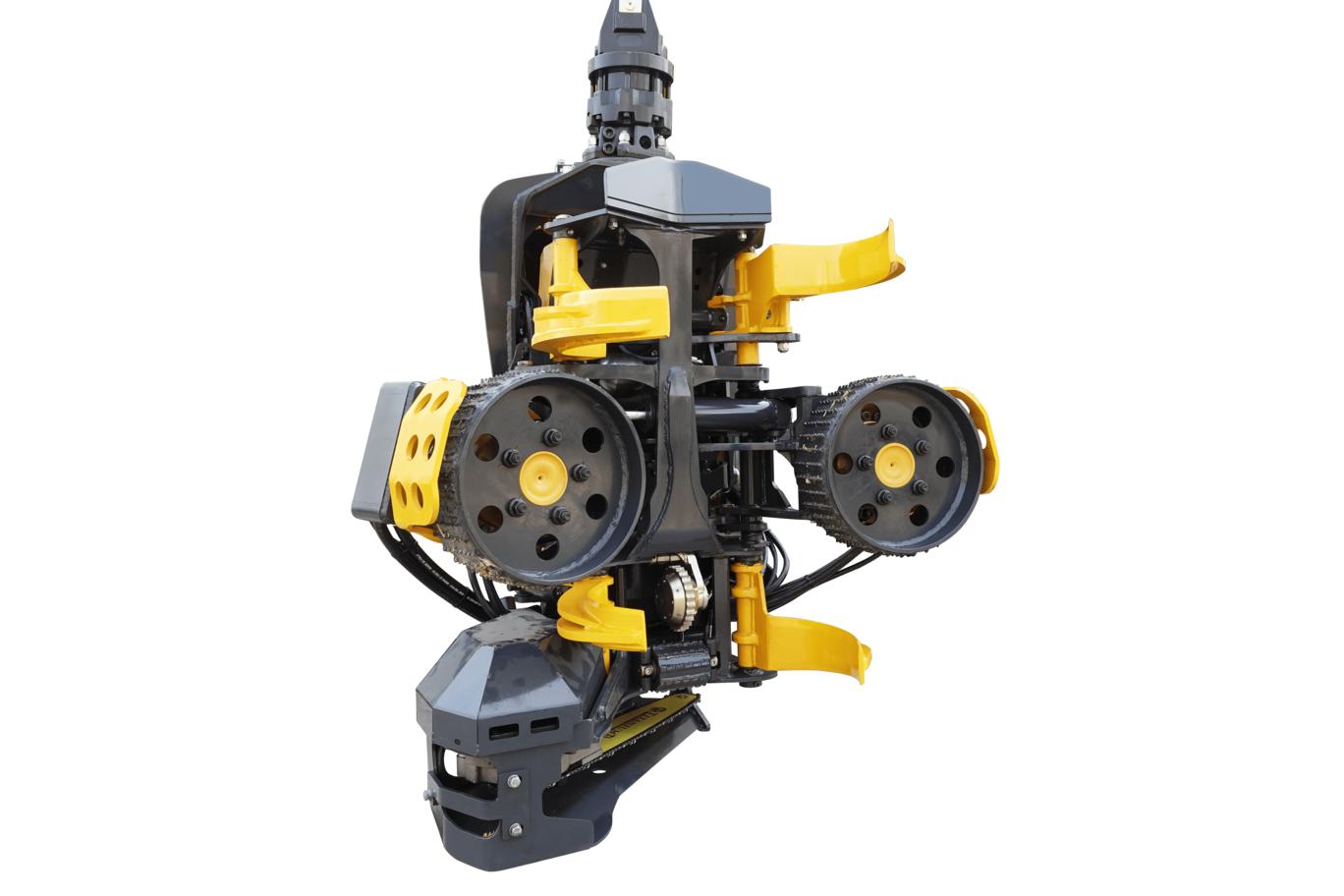

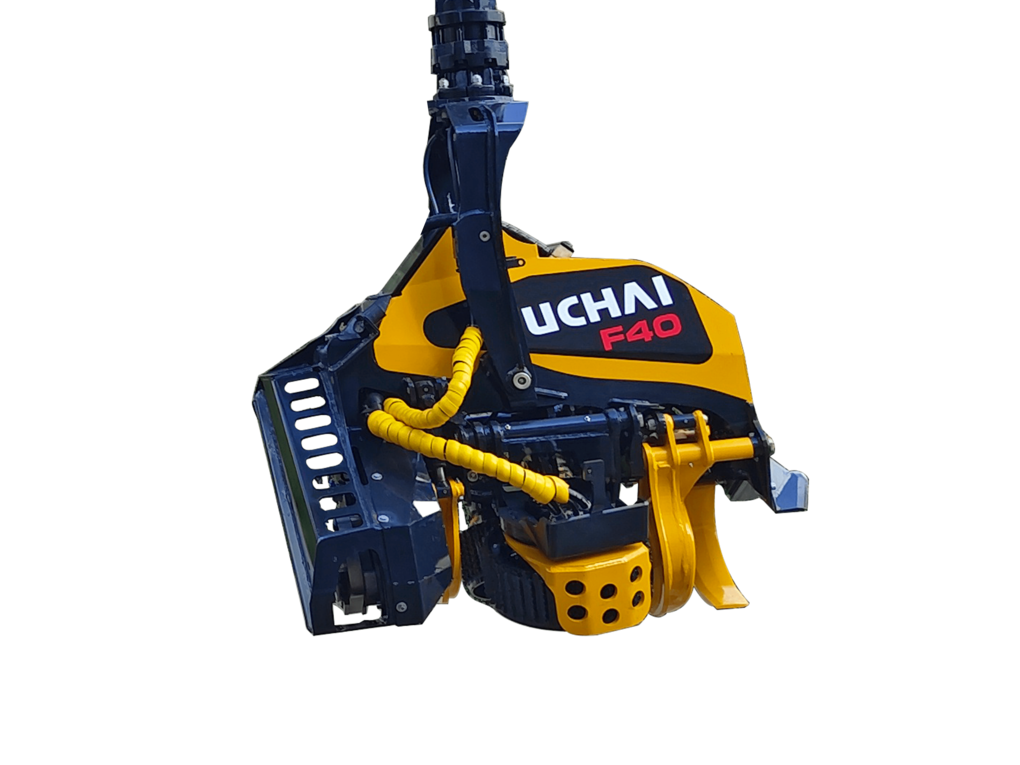

Yuchai F40 harvester head is a multi-functional forestcutting equipment. Harvester head is suitable for treeswith a diameter of less than 400mm, and is equippedwith 5 knives and 3 rollers. This machine has betterstability, higher yield, wide application range and easyoperation. The machine can be equipped with anexcavator of 8-15 tons.
1.Multifunction
2.High-efficiency
3.Strong power
4.Low consumption
5.Easy operation
6.Simply maintenance
Specifications
Features
| F40 | ||
| Chain saw | ||
| Chainsaw maximum cutting diameter | mm | 400 |
| Guide bar length | mm | 508（20 in） |
| Chain pitch | mm | 0.404 |
| Capacity of chain oil tank bar | L | 3.4 |
| Feeding | ||
| Rollers quantity | 3 | |
| Rollers diameter | mm | 371 |
| Max. opening of rollers | mm | 400 |
| Max. feed force | KN | 16 |
| Max. feed speed | m/s | 0~4.1 |
| Delimbing knife | ||
| Knives qty | 2+2+1 | |
| Diameter tip-to-tip | mm | 330 |
| Front knives max. opening | mm | 480 |
| Rear knives max. opening | mm | 510 |
| Hydraulic requirement | ||
| Operating hydraulic | MPa | 25 |
| Flow required | L/min | 150~180 |
| Power required | KW | 40-60 |
| Operating vdtage | V | 24 |
| Control system | YUCHAI | |
| Application | ||
| For Excavator | T | 8-15 |
| Technical specification | ||
| Width（head closed/head open） | mm | 870/1215 |
| Length | mm | 1290 |
| Height | mm | 1263 |
| Weight | kg | 680 |
